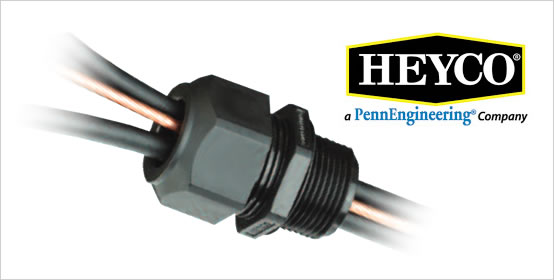

Heyco®-Tite Liquid Tight Cordgrips for Enphase Q Cables

Product Updates, Heyco

Heyco® introduces their Tite Liquid Tight Cordgrips for Enphase Q Cables

These straight-thru, NPT Hubs with integral sealing rings provide the ultimate in liquid tight strain relief protection.

  • Two new cordgrips now accommodate the Enphase Q Cable – M3231GCZ (1/2” NPT) and M3234GDA-SM (3/4” NPT).
  • The 1/2” version provides liquid tight entry for one Enphase Q Cable – .24 x .38” (6,1 x 9,7 mm).
  • The 3/4” version provides liquid tight entry for up to two Enphase Q Cables – .24 x .38” (6,1 x 9,7 mm) and an additional .130” (3,3 mm) dia. hole for a #8 solid grounding cable.
  • The 3/4” version utilizes our skinned-over technology so any unused holes will retain a liquid tight seal.

Quick Specs:

  • Material Nylon 6/6 with TPE sealing gland
  • CertificationsListed under Underwriters' Laboratories File E51579
  • Certified by the Canadian Standards Association File 93876
  • Flammability Rating 94V-2
  • Temperature Range Static -40°F (-40°C) to 239°F (115°C)
  • Dynamic -4°F (-20°C) to 212°F (100°C)
  • IP Rating IP 68
