Keystone’s New Hybrid Mount PCB Test Point

Product Updates, Keystone Electronics

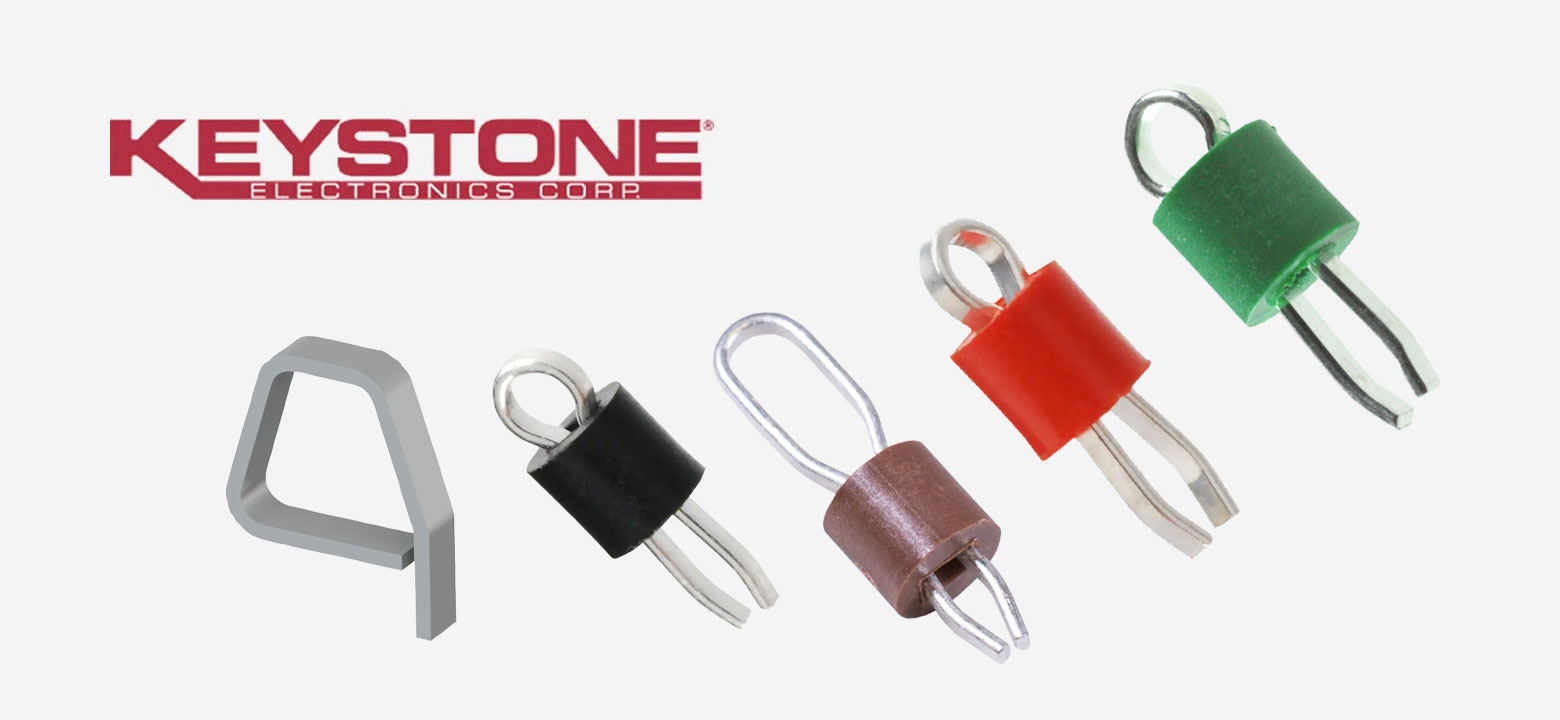

Keystone's introduces a new Hybrid Mount PCB Test Point. This unique miniature Circuit Board Test Point features the ability to be mounted on a PCB via Thru-Hole or Surface Mounting methods.

The Hybrid mounting style design maximizes the efficiency of SMT contacts with the strong and durable solder connections to a circuit board of Thru Hole mounted devices. This Test Point has a locating pin design to provide positive location of the device during the assembly process.  When installed on .032 thick boards, the locating pin can add the strength of a THM component to an SMT mounting design.

Cat. # 5027 features a flat-wire design making it a superior anchoring point for probes, J-Hooks and other circuit testing devices while minimizing shifting and damage which is common on standard posts and terminals.

Specifications:

  • Finish/Plating: Silver Plate
  • Material: Phosphor Bronze
  • Mounting: SMT
  • Packaging: Tape and Reel (per the ANSI/EIA-481 standard)
  • Locating pin maintains position during reflow operations
  • Ideal for precise placement on a PCB
  • 800 pcs / 7” reel
