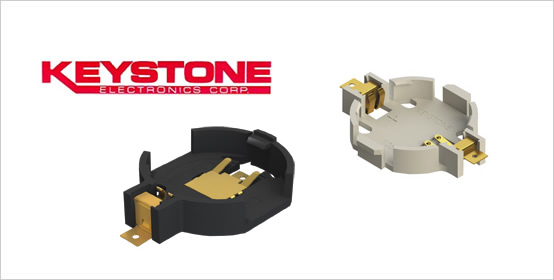

When circuit board height is a critical design parameter, Keystone offers a solution with an ultra-low profile holder for the #2032 Lithium Coin Cells. These new “Auto-In/Ultra-Low” SMT 2032 Coin Cell Holders rise only 2mm above the PCB surface and are ideal for retaining cells securely under shock and vibration in high-density applications for PCB requirements.
The dramatic reduction in the height of the holder on a circuit board is achieved by the unique method of partially mounting the holder thru a hole in the PCB, allowing the holder to sit through the PCB. Built In Stabilization tabs in the LCP, UL 94V-0 base add mounting security while Gold plated contacts assure increased PCB and solder joint mounting strength.
In applications where a 2032 battery installation or removal is restricted by other components and no tools are preferred for battery removal, then Keystone's new “Auto-In//EZ-Out” Holder is the best solution.
If you would like more information on Keystone’s new Coin Cell Holders contact your Tower representative at 800.688.6937, or by using our online information request form.
