New Keystone’s SMT Male Tab Terminals

Product Updates, Keystone Electronics

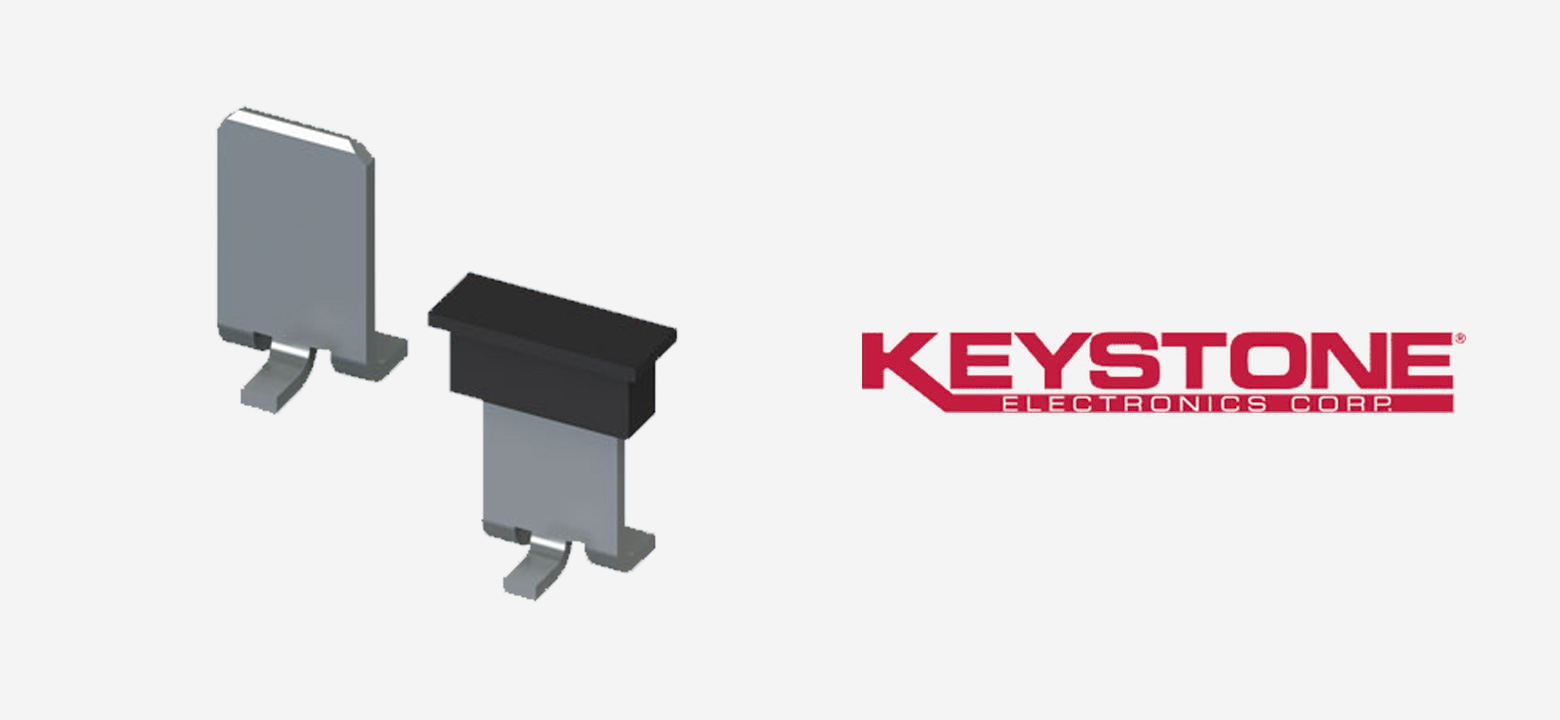

Keystone Electronics Introduces Surface Mount Male Quick Fit Terminals

These new SMT Male Tab terminals are specifically designed and packaged for use on PC Boards in the same manner as other surface mount components.

As a surface mount product, these new quick fit terminals reduce scrap and handling time while minimizing damage to a PCB that may occur while using traditional mounting of thru hole quick fit terminals used on PCB's.

The design also serves to keep terminals perpendicular to the PCB so that the relative position is maintained during, and permanently after, the soldering process, they are ideal for use with most vacuum and mechanical pick-and-place assembly systems

Male Quick FIt Terminals for PCB Applications

  • Designed for surface mount use on PC Boards
  • Faster board assembly
  • Manufactured from Brass with a tin plate
  • Ideal for Automated Installations
  • Supplied in Bulk or on Tape and Reel
  • Compatible with all reflow solder operations and vacuum and mechanical pick & place assembly systems
