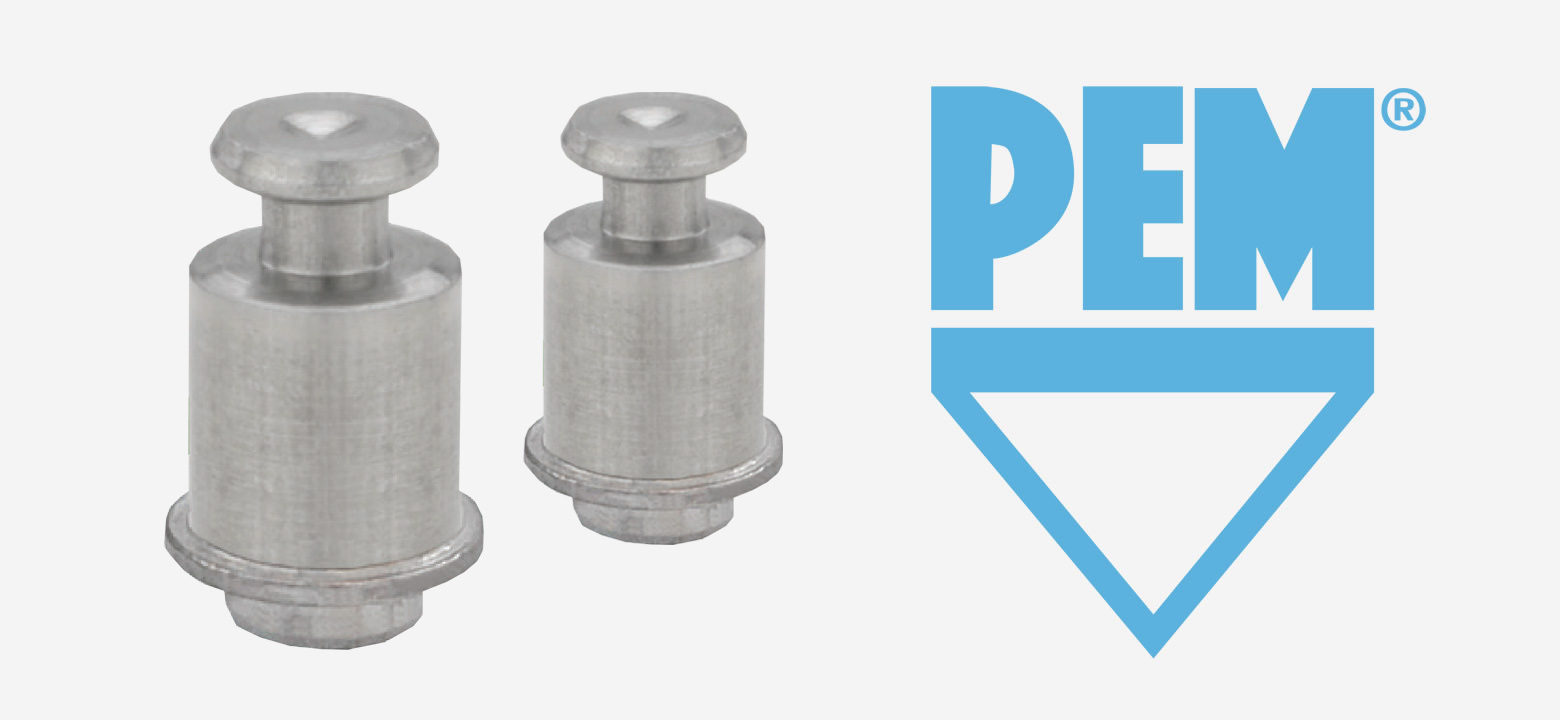

New PEM® SMTSK™ unthreaded standoffs from PennEngineering® permanently surface mount on printed circuit boards to enable quick attachment and removal of stacked components without requiring screws or tools. Their unique barrel design allows for a stacked board or panel to be slipped easily into place and then detached by simply sliding the component sideways and lifting it off. These standoffs will effectively serve to attach and space components either horizontally or vertically using minimal hardware and fewer assembly operations.
The standoffs are supplied on tape and reel compatible with existing SMT automated installation equipment and will mount on printed circuit boards in the same manner and at the same time as other surface mount components prior to the automated reflow solder process. These hardware solutions ultimately can reduce handling issues, risks of board damage, and costly scrap, while promoting streamlined production and “screwless” designs of subassemblies.
PEM SMTSK standoffs are manufactured from carbon steel and available in unified lengths .125”, 250,” and .375” and in metric lengths 3mm, 4mm, 6mm, 8mm, and 10mm. They will install successfully in boards as thin as .060” and 1.53mm.
These standoffs are the latest addition to the complete line of PEM® ReelFast® surface mounted fasteners, which also include other non-threaded and threaded standoffs, standard and micro nuts, right-angle fasteners, and captive panel screws.
If you would like more information on these or other PEM® products, please contact your Tower representative at 800.688.6937, or by using our online information request form.
