PEM Introduces New Surface Mount Spring-loaded Captive Panel Screw

Product Updates, PEM

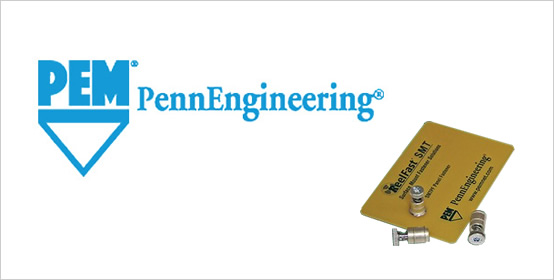

PennEngineering® is pleased to announce our latest development, the new Type SMTPFLSM™ surface mount spring-loaded captive panel screw. These all metal, one piece fasteners mount on P.C. boards in the same manner and at the same time as other surface mount components prior to the automated reflow solder process. Some of the strongest features that the SMTPFLSM™ includes are:

  • Alleviates concerns about potential damage to P.C. boards due to improper secondary installation operations.
  • The fasteners are provided on tape and reel compatible with existing SMT automated installation equipment (Ease of installation).
  • All metal captive screw assembly installs in one piece utilizing pick and place method.
  • Tool (Torx®/slot) or hand (knurled head) operation.
  • Solderable finish.
  • Screw length code “0” retracts flush in unfastened position.

PEM® ReelFast® surface mount spring-loaded captive panel screws (Type SMTPFLSM™) from PennEngineering® install precisely and permanently where designed on printed circuit boards to provide secure attachment and allow for subsequent access whenever necessary. These all-metal captive screw assemblies mount in one piece on boards using the pick-and-place method and will install in the same manner and at the same time as other surface mount components prior to the automated reflow solder process. The captive screw technology eliminates issues and risks associated with the handling, installing, and potential loosening of standard screws and can be easily actuated with the combination Torx®/slot drive.

PEM Type SMTPFLSM captive panel screws are supplied on tape and reel conforming to industry standards and are compatible with existing SMT automated installation equipment.  A polyimide patch affixed to the end of the fastener allows for vacuum pickup.  Unlike conventional fasteners, there is no requirement for secondary installation operations, which typically can damage boards and create scrap.   An anti-cross thread feature serves to correct off-angle installations and prevent thread damage during the mounting process.

The fasteners install reliably in boards of any hardness as thin as .063” / 1.6mm.  They are available in thread sizes #4-40 through #6-32 and M3 through M3.5 and in multiple screw lengths. Depending on length, the captive screw is designed to retract flush in the up position.

These captive panel screws join a growing portfolio of PEM surface mount fastener solutions engineered to perform a wide range of attachment functions in printed circuit board applications.

If you would like more information on PEM’s new surface mount spring-loaded captive panel screws, contact your Tower representative at 800.688.6937, or by using our online information request form
