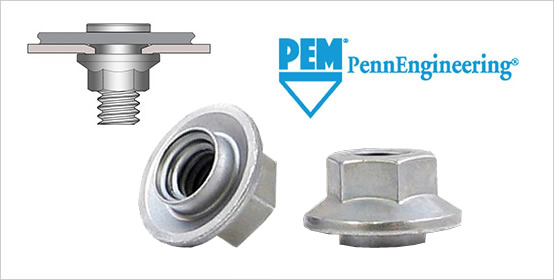

PEM® SFN™ spinning flare nuts from PennEngineering® become permanently captivated upon installation in thin metal sheets and, when paired with a self-clinching stud or other fixed externally threaded hardware, can eliminate all loose fasteners (including flange nuts) in attachment applications. These one-piece, flanged hex nuts additionally will spin freely in a sheet enabling quick attachment to mating hardware. Their use ultimately promotes savings in assembly time and costs.
PEM SFN steel spinning flare nuts install in steel, stainless steel, or aluminum sheets of any hardness and as thin as 1mm. They are available in metric thread sizes M5, M6, and 8.
Permanent installation is accomplished by inserting the nut into a properly sized, pre-punched, and embossed mounting hole in a metal sheet and then applying sufficient squeezing force to flare the fastener’s shank. When installed, the part will appear identical to a standard flanged hex nut above the sheet and will remain flush on the other side.
If you would like more information on these or other PEM® products, please contact your Tower representative at 800.688.6937, or by using our online information request form.
