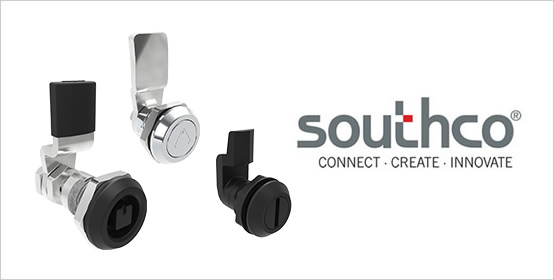

Southco’s New E5 Cam Latch Series

Product Updates, Southco

The E5 Cam Latch series is designed for applications where quick access is required. Southco’s E5 Cam Latches delivers tough, vibration-resistant fastening. The E5 aligns the cam behind the frame for secure latching with a single continuous quarter-turn motion that provides smooth operation.

• Available in a variety of head styles – hand-actuated, tool-actuated, and keylocking
• Tool-operated versions are spring-loaded for grip tolerance and vibration resistance
• Padlocking wing knob styles available for left- or right-handed operation Available in multiple body material options –zinc alloy, glass-filled nylon and 304 and 316 stainless steel

These latches deliver ease at an affordable price point – including quick access with just a quarter turn, the versatility of multiple body materials, plus the flexibility of modular design for numerous actuation and dimensional options. Ramped cams provide a snug fit to minimize vibration and rattles.

Available Options

•  Latch actuation available with choice of clockwise or counter-clockwise rotation
• Available with multiple options of manually actuated, tool-actuated, or keylocking designs
• Push-to-close styles available for single point and two-point latching configurations • Most styles available in a variety of metallic, black and custom-color finishes
• Low Profile Series offers optional O-rings/sealing washers to provide environmental sealing • Standard Series includes die-cast, stainless steel, and glass-filled nylon constructions
• Shutter-style driver option prevents accidental opening and provides visual indication of unsecured latching
• Friction cams available in 35 mm (1.38”) or 45 mm (1.77”) lengths; hook cams available to suit different frame configurations

Standards and Specifications

• Maximum static working loads on rotating cams vary by latch style, up to a maximum of 670 N (150 lbs.)
• Maximum static working load on push-to-close styles is 330 N (74 lbf)

Industry Applications

• Bus, Coach & RV • Enclosures • Furniture
• HVAC – Heating/Ventilation/Air Conditioning
• Industrial Machinery • Off-Highway – Construction, Farm Vehicles
• Self Service Point of Sale Assembled latches simplify and speed installation in applications where grip exceeds panel thickness by 4 mm (.16”).

For unassembled latches, cam mounts on end of drive stud with a single screw.
