Press Room

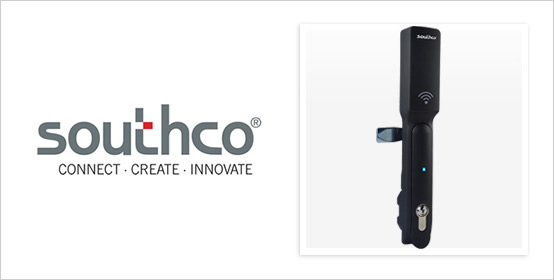

Southco’s New Electronic Locking Swinghandle Provides An Integrated Smart Card Reader

Product Updates, Southco

Southco’s new H3-EM 65 Series Electronic Locking Swinghandle provides an integrated HID SE® smart card reader. This fully integrated intelligent lock supports multiple RFID readers, providing a higher level of security and facilitating the transition to new security technologies used to manage access to keyless entry points at the equipment level.

  • Reads HID 125 kHz prox, 13.56 MHz iCLASS® and MIFARE® smart card credentials
  • Easy integration with standard rack monitoring and security systems
  • Integrated LED indicators for lock and reader status monitoring
  • Fits industry standard panel preps for easy installation

The H3-EM Electronic Locking Swinghandle can easily accommodate a variety of rack sizes and configurations with its simple, single-hole panel preparation.

Available Options

  • Custom logo options
  • Multiple manual key code options
  • Alternate serial data outputs available with prox module
  • Available with Wiegand or RS-232 output
  • Available with HID SE® card reader that accepts 125 kHz Prox, HID 13.56 MHz iCLASS® and MIFARE® Cards
  • Available with integrated biometric reader. For additional information, please contact us

Standards and Specifications

  • Less than 200 milliamps operating current
  • 12 to 24 VDC operating voltage
  • Constructed of glass-filled nylon
  • Industry standard 25mm x 150mm panel prep

Industry Applications

  • Datacenters
  • Industrial Enclosures
  • Self Service
  • Secure Storage
  • Medical Equipment

If you would like more information on Southco's new H3-EM 65 Series Electronic Locking Swinghandle contact your Tower representative at 800.688.6937, or by using our online information request form.
