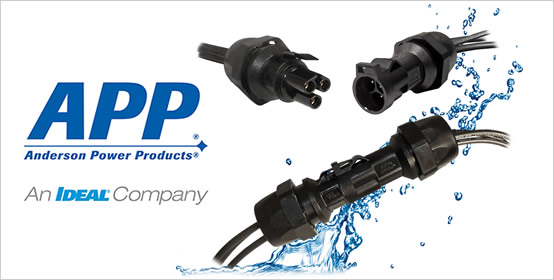

APP’s New SPEC Pak® Connectors Give You More Power In Less Space

Product Updates

Anderson Power's new 3 & 5 Pole Mini PL SPEC Pak® Connectors give you more power in less space. These new waterproof connectors have the following features:

  • IP68 Waterproof to 6 Feet Depth for 30 Minutes
  • Up to 23A Per Position on Reliable Gold-Plated Contacts
  • Touchsafe and Scoop Proof on Both Sides
  • Crimp & poke contacts secure into durable and easy to assemble shells
  • Backshell options for discrete wires or jacketed cables

These new connectors are part of Anderson Power's SPEC Pak® connector series. SPEC Pak® Connectors offer a highly configurable, rugged, environmentally sealed family of connectors. The IP68 shell conforms to industry standards for flammability and weather-ability. The core contact technology housed within the SPEC Pak® shell has been proven reliable for more than 50 years. These contacts accommodate wires from 24 – 3/0 AWG (0.25 to 85.0 mm²) and are capable of handling from 15 to 310 amps per contact at 600 volts (UL). Combining the power, signal and ground contacts with the wide array of colored touch safe Powerpole® housings provide engineers thousands of design options for the most demanding applications.

  • Environmentally Sealed (IP68) Rated Shell
  • Power (15 to 310 amps at 600 volts, AC/DC), Signal & Ground in a Single Interconnect
  • Rugged, Safe and Versatile Shells
  • Color-coding Capabilities
  • Highly Configurable

If you would like more information on Anderson Power's new 3 & 5 Pole Mini PL SPEC Pak® Connectors, contact your Tower representative at 800.688.6937, or by using our online information request form
