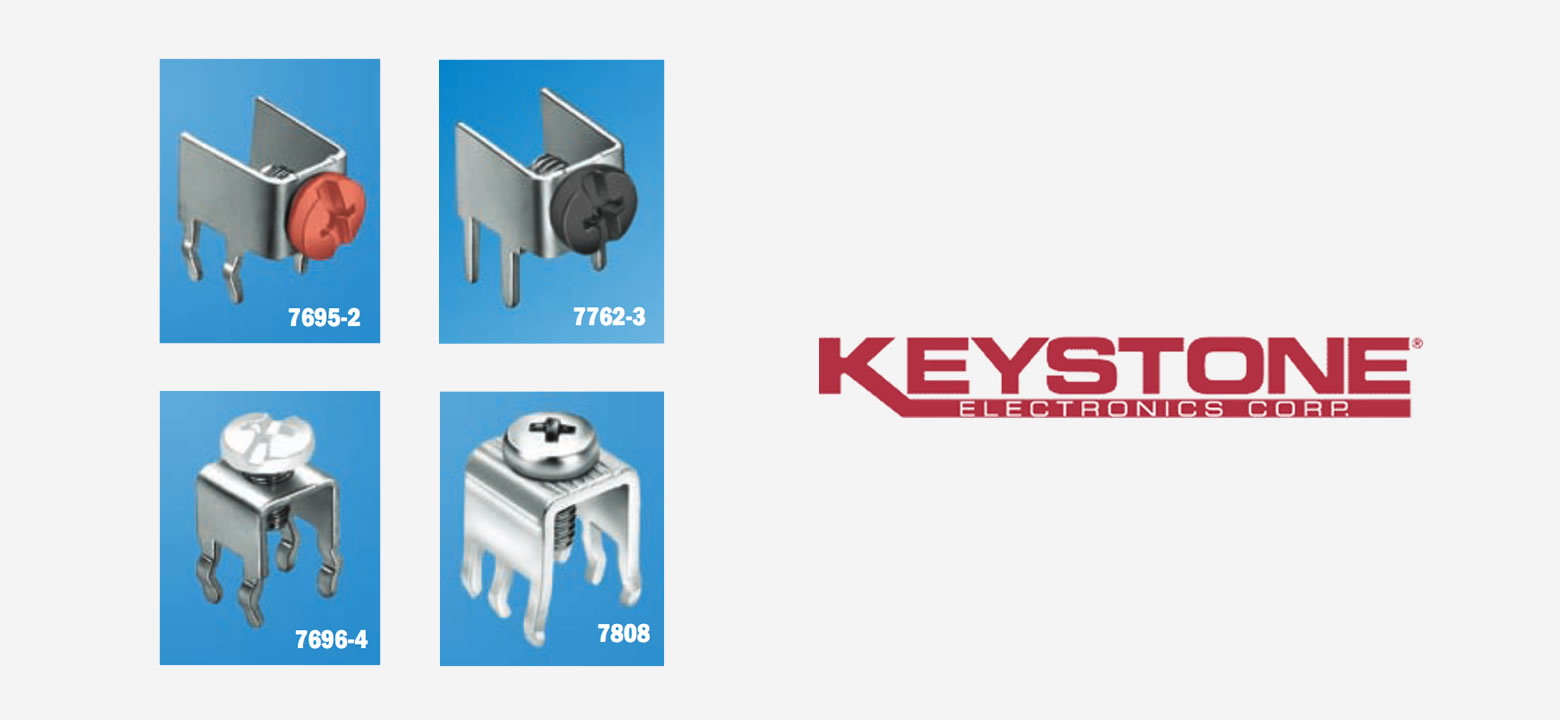

Rated 15 and 30 Amps, these new screw terminals are ideally suited for high density packaging. They feature a no-rock design with an exclusive anti-rotation feature. Combined with space-saving, cost effective attributes, the units enable design versatility for universal applications.
Manufactured from brass with a tin plate finish, these terminals are available with binding head machine screws in thread sizes M3, M4 & M5. Screw terminals are supplied with screws either installed and captivated on the terminals or unassembled. M3 size screws are also available with color coded heads in red, black, white, blue, green, yellow and clear for enhanced identification purposes. Screw terminals are also available without any screw supplied.
Expanded selection of horizontal and vertical Screw Terminal Connectors to include Metric “Snap-in” or “Press-In” PC Thru-Hole Mount styles.
These multipurpose connectors are a practical, economical alternative to screw type edge connectors, barrier blocks, screw terminal boards and terminal strips. They are manufactured from 0.80mm thick Brass, Tin plated, and are supplied with an M3, M4 or M5 Brass, Nickel plated, binding head screws. The screws are supplied either unassembled or installed and captivated.
Designed for high density packaging, these low profile connectors accept 14-22 AWG wire and are rated 15 Amps and Heavy Duty versions for 30 Amps. They mount securely to the PC board and are designed to retard wicking.
Availability is from stock through Keystone's Global Distributor Network. Application engineering services are available to meet special customer requirements.
Refer to Keystone's Catalog for our complete product offering and specifications.
