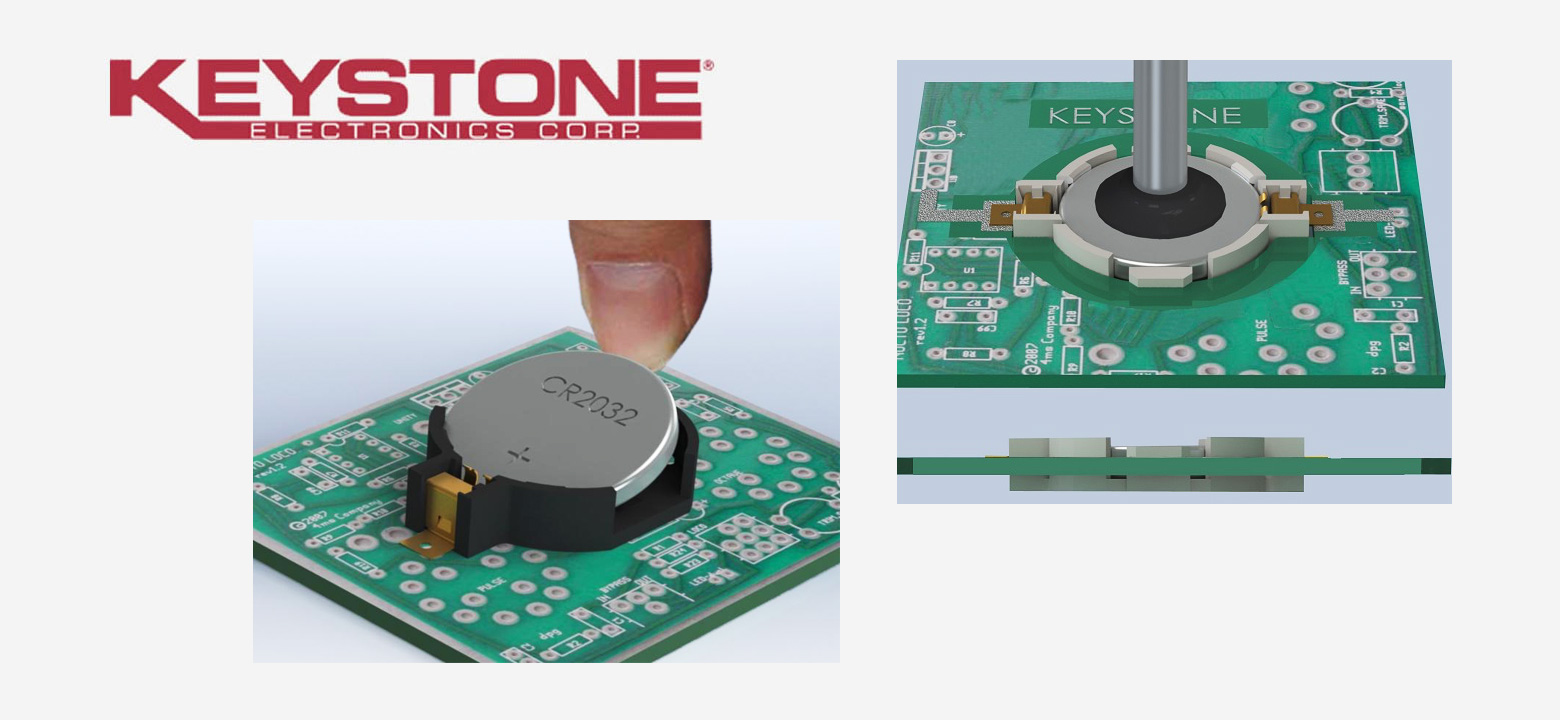

When circuit board height is a critical design parameter, Keystone offers a solution with an ultra-low profile holder for the #2032 Lithium Coin Cells.
These ultra low profile holders rise only 2mm above the PCB surface and are ideal for retaining cells securely under shock and vibration in high-density applications for PCB requirements.
The dramatic reduction in the height of the holder on a circuit board is achieved by the unique method of partially mounting the holder thru a hole in the PCB, allowing the holder to sit through the PC board.
Built-In, stabilization tabs in the LCP housing add mounting security while Gold plated contacts assure increased PCB and solder joint mounting strength
In applications where a 2032 battery installation or removal is restricted by other components and no tools are preferred for battery removal, Keystone's “Auto-In/ EZ-Out"Holder is the best solution.
These latest holders have polarized, Gold Plated Phosphor Bronze contacts mounted in a UL 94 V-0 black plastic base making them ideal for retaining cells securely under shock and vibration, in rugged, high-density applications.
If you would like more information on Keystone Products, please contact your Tower representative at 800.688.6937, or by using our online information request form.
