New 3-Way Adjustable Concealed Hinge from Sugatsune

Product Updates, Sugatsune

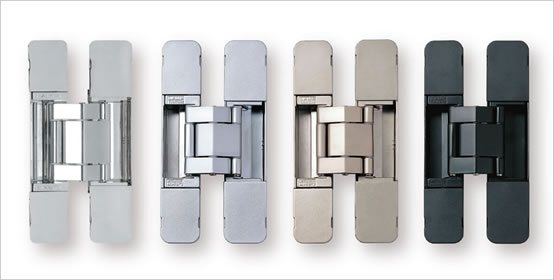

The new model HES3D-E190 3-way adjustable concealed hinge from Sugatsune is now UL listed with a three hour fire rating. It's revolutionary 3-way adjustment function allows vertical, horizontal, and depth adjustment after hinge is installed and has successfully passed 300,000 open/close private cycle tests. The hinges are easily installed and adjusted and features a cover that hides all screw heads for a clean appearance. Finishes include Polished Nickel, Dull Chrome, Dull Nickel, and Matte Black. Optional HES3D-E190BKT mounting brackets are available for installation onto steel doors and frames.

Features

  • Easy installation and adjustment
  • Vertical, horizontal & depth adjustment
  • Supplied with steel flat head screws
  • Cover hides all screw heads
  • HES3D-E190 is UL listed with a 3 hour fire rating

Specifications

  • Door Weight: Max. 220lbs (100kg) /2pcs.
  • Max. 275lbs (125kg) /3pcs.
  • Door Thickness: Min. 1-1/2” (38mm)

If you would like more information on Sugatsune's new 3-Way Adjustable Concealed Hinge contact your Tower representative at 800.688.6937, or by using our online information request form
