New Sugatsune Heavy-Duty Euro Hinge
Product Updates, Sugatsune

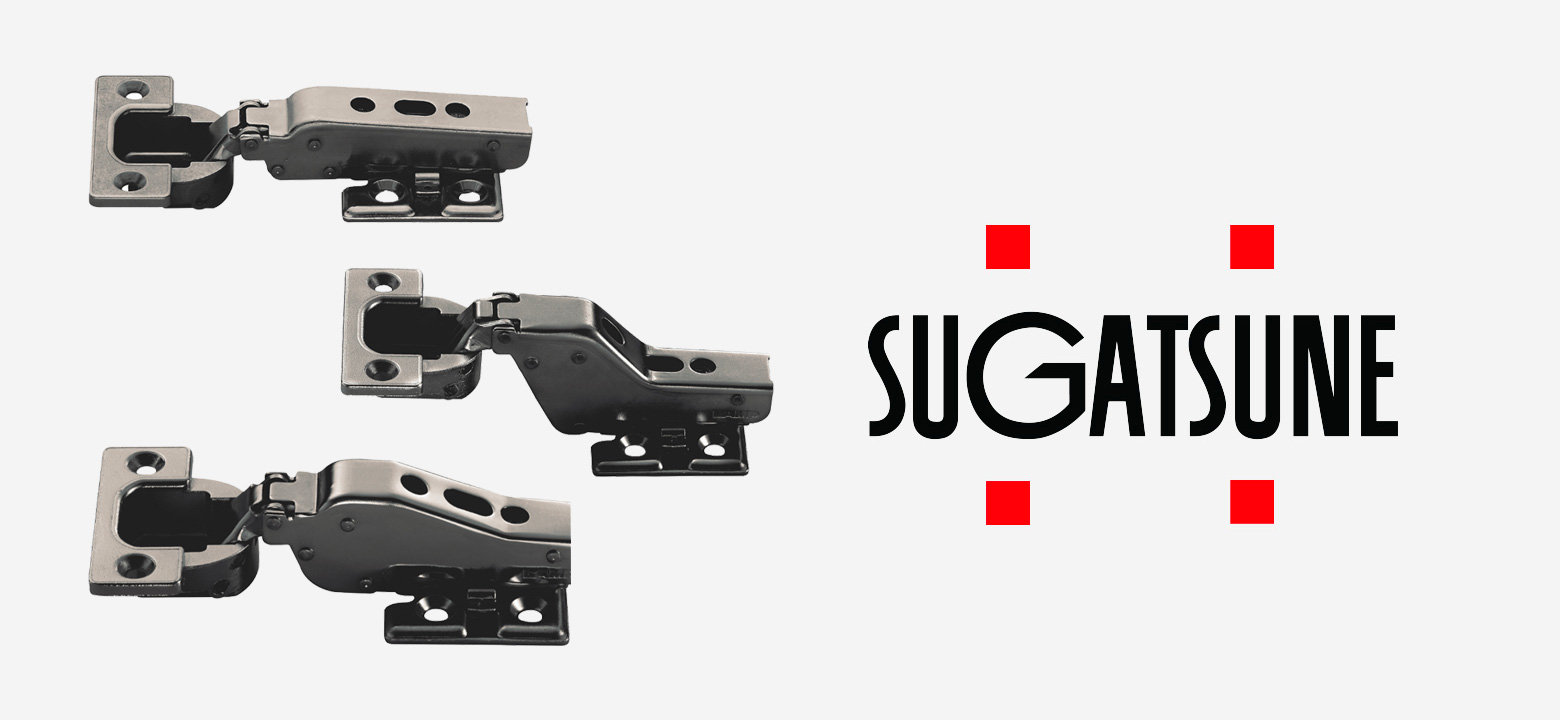

Sugatsune Announces their New J95 Heavy-Duty Concealed Hinge.
These concealed hinges minimizes the number of hinges needed for large cabinet doors. As few as three hinges have the strength to hold 88lb doors. The J95 can accommodate wider doors, up to 900mm (35-7/16”) and has a 3-way adjustability. Include hinge and mounting plate covers for an enhanced elegant finish.
- Available in full overlay, half-overlay and insets.
- Black nickel finish
- Load capacity: 25 kg (55 Ibs) / 2 pcs, 40 kg (88 lbs) / 3 pcs.
- Maximum door width: 800 mm (31-1/2”) / 2 pcs, 900 mm (35-7/16”) / 3pcs.
- Clip on type for easy installation.
- 3-way adjustment with door installed.
- Requires 6 M5 or equivalent (US#10) screws: 2 pcs for each hinge, and 4 pcs for each mounting plate.
- Optional hinge cover (J95SC-16GR) and mounting plate cover (J95ZC-GR) available.
- Glass face plate (GH-J95FP) also available.
If you would like more information on these or other Sugatsune products, please contact your Tower representative at 800.688.6937, or by using our online information request form.
