PEM Offering New Type Flush-head Studs with X-Press™ Thread Profile

Product Updates, PEM

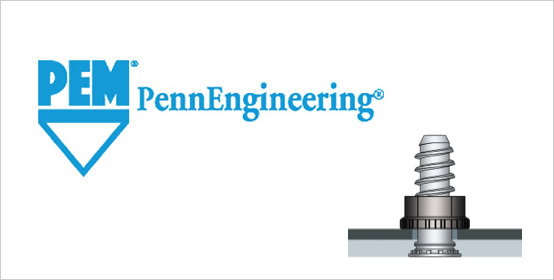

PennEngineering® is pleased to announce our latest development, the new Type Flush-head Studs with X-Press™ Thread Profile. These self-clinching, flush-head studs with X-Press™ threads, are typically used with push-on or other plastic fasteners. The coarse-thread design of the thread reduces assembly time and provides high retention force. PEM studs with X-Press™ threads are available with 5 mm and 6 mm metric threads. Lengths range from 10 mm to 25 mm.

Main Features

• Among the strongest features that the FH X-Press™ Stud may include:
• Offers fast, reliable attachment.
• Reduces assembly time.
• Allows for lighter assembly.
• Self-clinching stud mounts flush in metal sheets as thin as 1mm.
• Thread design accommodates paint and coatings without compromising performance.
• Replaces weld studs, cleanly and with attractive finished appearance.
• Can be installed during the stamping process with PEMSERTER® in-die technology.

Material: Hardened Carbon Steel
Standard Finish: ZI - Zinc Plus Clear Chromate
Optional Finish: X - Rust Preventative Oil
For use in sheet hardness: HRB 80 or less (Hardness Rockwell “B” Scale) / HB 150 or less (Hardness Brinell)

If you would like more information on PennEngineering’s new Type Flush-head Studs with X-Press™ Thread Profile contact your Tower representative at 800.688.6937, or by using our online information request form
