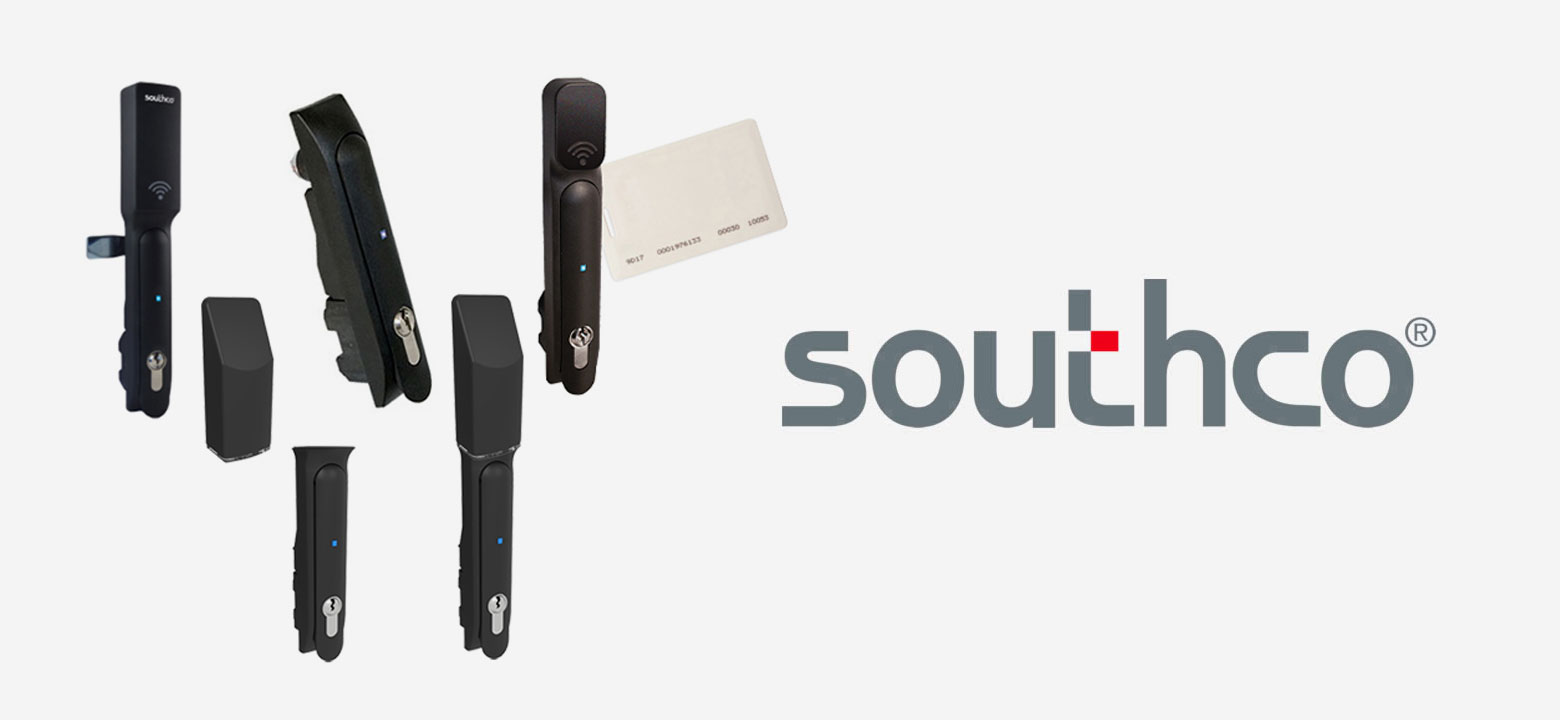

Southco’s New Modular Swinghandle

Southco

Southco’s New H3-EM Modular Electronic Locking Swinghandle features an efficient microprocessor-controlled gear motor design that ensures minimal power consumption and provides intelligent locking and monitoring capabilities. The H3-EM can be used as a standalone system, integrated with an existing building access control system or supplied as a fully networked system enabling remote monitoring and audit trail reporting to meet compliance requirements, such as HIPAA and Sarbanes Oxley.

Southco’s H3-EM Modular Swinghandle Latch lets you easily choose and change security options according to your customers’ specifications. With options for RFID card readers and beyond, the H3-EM Modular gives you the security you need, all in one convenient latch. This Electronic Locking Swinghandle can easily accommodate a variety of rack sizes and configurations with its simple, single-hole panel preparation.

Features & Benefits

  • Fits industry standard panel preps
  • Easy integration with standard rack monitoring and security systems
  • Integrated sensors for lock and latch status, monitoring and alarm functions®
  • Efficient gear motor design for low power consumption
  • Momentary or continuous lock actuation with integrated manual override lock
  • Easy Installation
  • One latch meets any security requirements
  • Plug-and-play security system integration

Available Options

  • Custom logo options
  • Multiple manual key code options
  • Alternate serial data outputs available with prox module
  • Available with Wiegand or RS-232 output
  • Available with HID SE® card reader that accepts 125 kHz Prox, HID 13.56 MHz iCLASS® and MIFARE® Cards
  • Available with integrated biometric reader. For additional information
  • Available with Dual Frequency CSN / UID reader

Standards & Specifications

  • Less than 200 milliamps operating current
  • 12 to 24 VDC operating voltage
  • Constructed of glass-filled nylon
  • Industry standard 25mm x 150mm panel prep

If you would like more information on these or other Southco products, please contact your Tower representative at 800.688.6937, or by using our online information request form.
